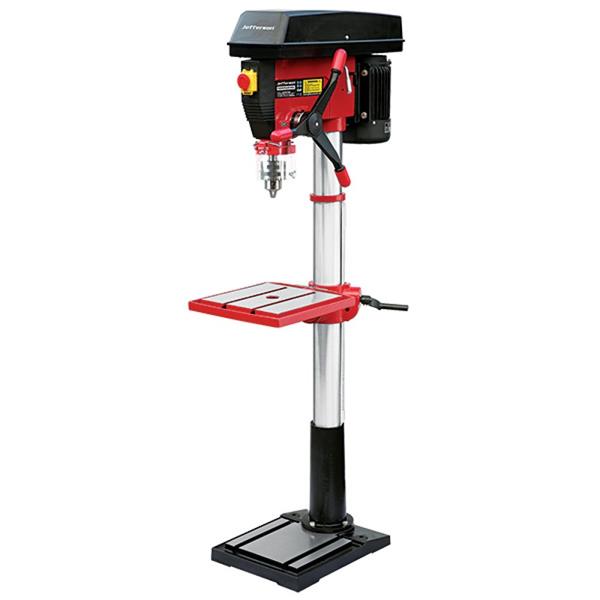

Jefferson JEFPDB1500 Pillar Drill 1500W
The Jefferson JEFPDB1500 Pillar Drill is a heavy‑duty 1500‑watt drill press built for demanding workshop and fabrication environments. With its high‑power motor and cast‑iron construction, it delivers the torque, stability, and accuracy needed for drilling larger holes in hardwoods, plastics, and mild steel. The machine’s rigid pillar and base help minimise vibration, allowing precise and repeatable drilling even during continuous use. A multi‑speed pulley system provides the flexibility to match spindle speed to different materials, making it suitable for both fine woodworking and metal fabrication.
Features
- Cast iron working table and cast iron base
- Micro-switch inside pulley cover box
- Front emergency switch
- Cast iron feeding handle
- Chuck guard
- Cast iron belt pulley
- Rack lifting system
- Flexible LED working light
- Cross laser light
Specifications
- Base Dimensions 575 x 425mm
- Chuck Capacity 5-20mm
- Column Diameter 92mm
- Height 1710mm
- Max. Distance from Spindle Axis to Surface of Column 255mm
- Max. Distance from Spindle End to Surface of Base 1205mm
- Max. Drilling Diameter 32mm / 1 1/4"
- Motor Power 1500W
- Number of Speeds 12
- Speed 150-2450rpm
- Spindle Taper MT4
- Spindle Travel 120mm
- Swing 510mm
- Table Dimensions 420 x 480mm
- Voltage 230V
- Net Weight 125 kg
- Gross Weight 125 kg
- Dimensions 893 x 163 x 1265mm
Applications
- Heavy‑duty drilling in hardwood, softwood, plastics, and mild steel
- Fabrication and engineering tasks requiring high torque and stability
- Precision drilling of plates, brackets, fixtures, and structural components
- Continuous workshop use where accuracy and rigidity are essential
- Larger drill‑bit operations supported by the 1500W motor
Comes With
- 1500W pillar drill unit
- Cast‑iron base and column
- Adjustable work table
- Multi‑speed pulley and belt system
- Fitted chuck (typical for Jefferson pillar drills)
- Keyed chuck system
- Pre‑drilled mounting holes for bench or stand installation
- Assembly hardware
- User manual
